Reality IMT provided hotel as-built documentation for this hotel totaling approximately 232,000 SF in Amarillo, Texas.

Facility Type

Hotel

Project Scale

232,000 SF

Primary Service

Hotel As-Built Documentation

Project Purpose

Hotel Renovation Planning

Project Overview

Project Summary

Reality IMT performed 3D as-built scanning of the entire building including the roof and parking lot, followed by point cloud processing, Revit LOD 300 modeling, and PDF sheet production for floor plans, ceiling plans, exterior elevations, and roof plans. Area calculations were provided for every room in the 232,000 SF hotel.

The project supported a complete renovation and upgrade of the entire building using a different business model within the hospitality industry. Reality IMT was chosen because of its vast experience with documenting large structures within days. Fast turnaround time motivated the owner because time was of the essence, and the fee was very reasonable for the effort.

hotel existing condition scanning and documentation

Client Need

Project Challenge

The hotel required complete renovation and upgrading to a different business model within the hospitality industry. The owner needed accurate existing-condition documentation to support the renovation design, planning, and permitting process across the entire 232,000 SF building.

Access / Coordination

The abandoned building had no power, and access to all rooms was not easy due to old furniture blocking entryways. Coordination with the owner’s representative was required to figure out access while the survey team was on-site.

Technical Documentation

The project required comprehensive documentation of the entire building including roof and parking lot, with Revit LOD 300 modeling and room-by-room area calculations across 232,000 SF.

Schedule / Business Constraint

Fast turnaround was critical to keep the renovation project on schedule. Reality IMT’s proven ability to document large structures within days and a reasonable fee structure were key decision factors.

Project Details

Project Type

Hotel As-Built Documentation

Location

Amarillo, Texas

Primary Industry

Facility Managers & Building Owners

Facility / Asset Type

Hotel

Primary Service

As-Built Drawings & CAD

Supporting Services

3D Laser Scanning, Building Documentation, Revit Modeling, Scan-to-BIM

Project Purpose

Hotel Renovation Planning, Brand Conversion, Existing Conditions Record

Deliverables

Revit Model
PDF Drawing Sheets
Point Cloud
Roof Plan
Exterior Elevations
Area Calculations

Approximate Scope

232,000 SF

Client

Confidential

Deliverables

Revit Model, PDF Drawing Sheets, Point Cloud, Roof Plan, Exterior Elevations, Parking Lot Documentation

Reality IMT’s Approach

Large-Scale Hotel Capture and Renovation-Ready Deliverables

Reality IMT structured the work to document the entire 232,000 SF hotel efficiently despite abandoned conditions and access challenges, delivering renovation-ready models and drawings on a tight schedule.

Planning & Scope Alignment

Reality IMT coordinated with the owner’s representative to plan access routes through the abandoned hotel, addressing blocked entryways and no-power conditions before field deployment.

Field Capture

3D laser scanning captured the entire building including all guest rooms, common areas, roof, and parking lot, deploying teams to document the large structure within days.

Processing & QA/QC

Point cloud data was processed and quality-checked before Revit LOD 300 modeling, with room-by-room area calculations verified for accuracy.

Deliverable Production

As-built Revit LOD 300 models for architectural and structural conditions, plus PDF sheets with tags and area analysis for floor plans, ceiling plans, exterior elevations, and roof plans.

Project Outputs

Deliverables Provided

The deliverables below reflect the archived project information and should be matched with project-specific images before publication.

As-Built BIM Services- Existing condition documentation and CAD drawings

Revit Model

As-built Revit LOD 300 models for architectural and structural conditions across the entire 232,000 SF hotel.

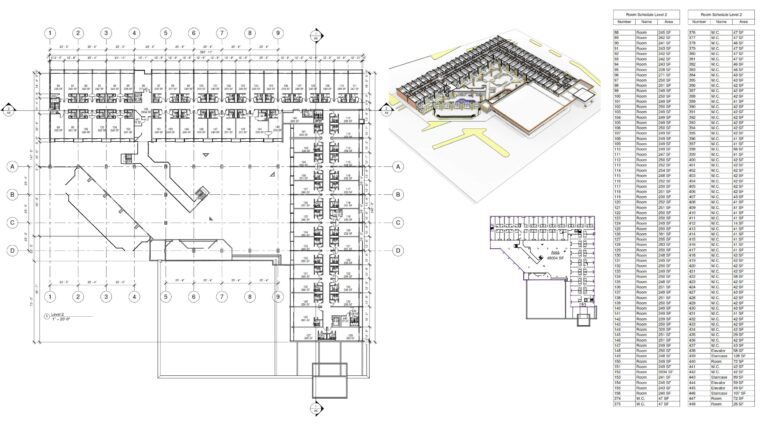

record drawings for existing hotel from 3d laser scan data

PDF Drawing Sheets

Sheet-based PDF deliverables for floor plans, ceiling plans, exterior elevations, and roof plans with tags and dimensions.

Point Cloud

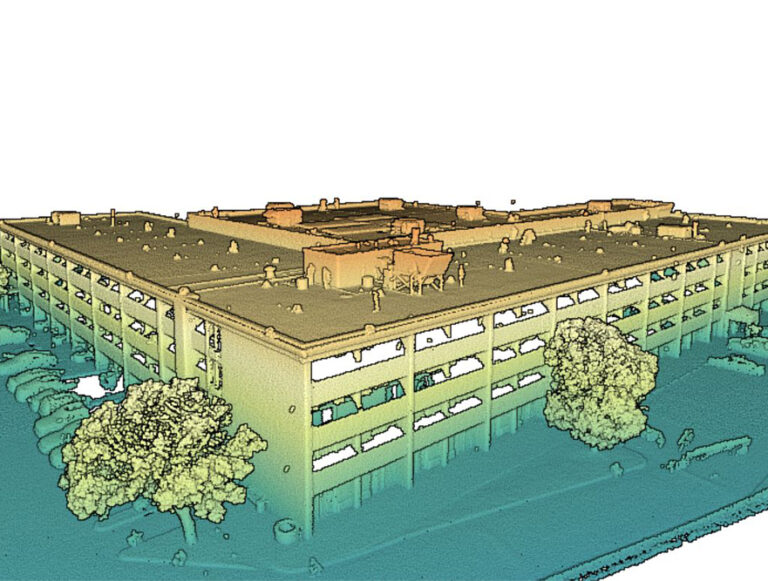

Registered 3D laser scan data for the full building interior, exterior, roof, and parking lot.

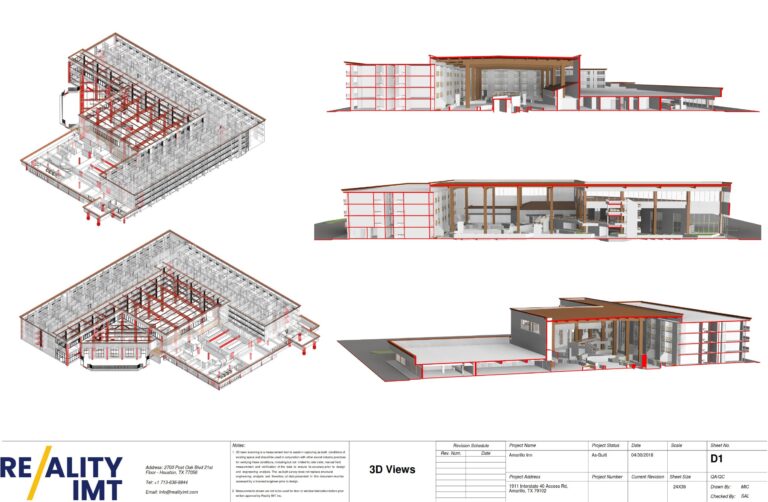

hotel as-built bim model in revit- reality imt

Roof Plan

Documented roof geometry and conditions for mechanical coordination and renovation planning.

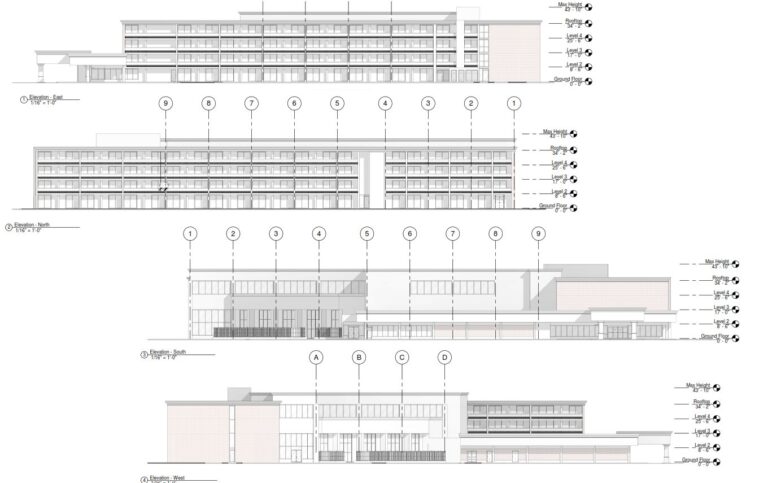

Exterior Elevations

Measured exterior building elevations for facade assessment, signage planning, and brand conversion design.

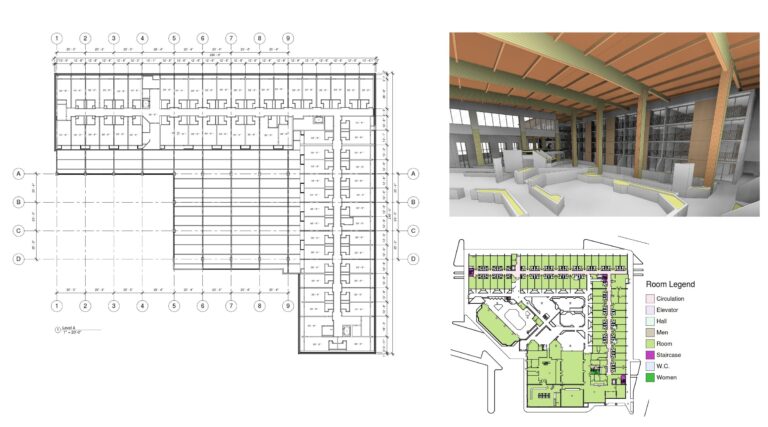

Area Calculations

Room-by-room area calculations to support space planning, revenue analysis, and renovation design for the new hospitality business model.

Project Outcome

Complete Hotel Documentation for Renovation and Brand Conversion

The completed documentation provided the owner with accurate as-built Revit LOD 300 models, PDF sheets, and room-by-room area calculations needed to support the complete renovation and brand conversion of the 232,000 SF hotel. The fast turnaround and reasonable fee kept the project on schedule.

The comprehensive digital record — including floor plans, ceiling plans, exterior elevations, roof plan, and parking lot documentation — created a reusable foundation for renovation design, permitting, and future facility management.
