Hilton Garden Inn Hotel Renovation Documentation

Reality IMT provided hotel renovation documentation for this hotel totaling approximately 137,000 SF in San Antonio, Texas.

Facility Type

Hotel

Project Scale

137,000 SF

Primary Service

Hotel Renovation Documentation

Project Purpose

Furniture Upgrades

Project Overview

Project Summary

Reality IMT performed 3D laser scanning of the existing building including typical rooms, furniture, and interior walls, the swimming pool area, and exterior elevations. The scope supported existing condition documentation for furniture upgrades and complete remodel of the hotel rooms.

Reality IMT was chosen because of its extensive experience with scanning and documenting hotel buildings with a proven track record, fast turnaround, and a competent engineering team that can be trusted with exact measurements.

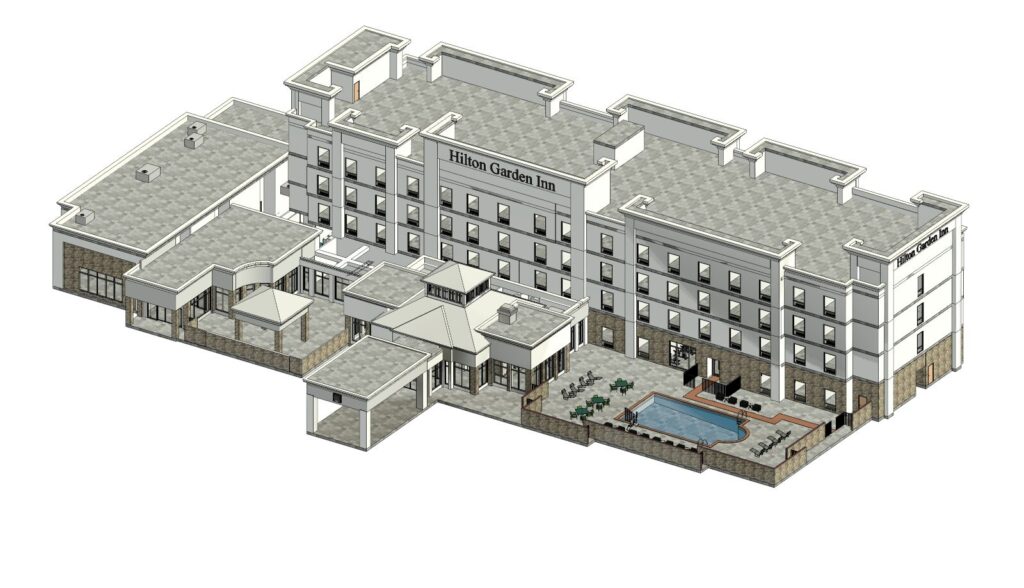

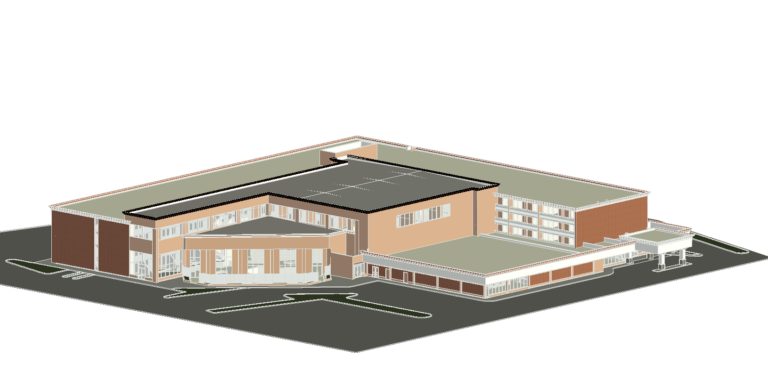

Hotel Renovation Documentation deliverable snapshot for Hilton Garden Inn Hotel Renovation Documentation by Reality IMT

Client Need

Project Challenge

The hotel required existing condition documentation to support furniture upgrades and a complete remodel of the hotel rooms. The project demanded accurate measurements of typical rooms with existing furniture, interior walls, and common areas to support the renovation design and procurement process.

Access / Coordination

The hotel was 66% occupied. Reality IMT had to coordinate access with management throughout the scanning period to determine which rooms could be accessed. Organizing this data was difficult because scanning did not happen in sequence.

Technical Documentation

The project required LOD 400 Revit modeling including furniture, wallpaper, exterior elevations, electrical plans, and reflected ceiling plans across typical rooms and common areas.

Schedule / Business Constraint

Clear notes had to be written to communicate back to the office team how the scanning took place so that they could register the data accurately, despite the non-sequential room access.

Project Details

Project Type

Hotel Renovation Documentation

Location

San Antonio, Texas

Primary Industry

Facility Managers & Building Owners

Facility / Asset Type

Hotel

Primary Service

Building Documentation & Measurements

Supporting Services

3D Laser Scanning, As-Built Drawings, Interior Documentation, Revit Modeling

Project Purpose

Furniture Upgrades, Hotel Renovation Planning, Existing Conditions Record

Deliverables

Revit Model
PDF Drawing Sheets
Furniture Documentation
Exterior Elevations

Approximate Scope

137,000 SF

Client

Confidential

Deliverables

LOD 400 Revit Model, PDF Drawing Sheets, Interior Documentation, Furniture Documentation

Reality IMT’s Approach

Occupied Hotel Capture and Renovation-Ready LOD 400 Production

Reality IMT structured the work to document a 66% occupied hotel with non-sequential room access, delivering LOD 400 models with furniture and interior details for renovation planning.

Planning & Scope Alignment

Reality IMT coordinated with hotel management to establish a dynamic room-access schedule, planning for non-sequential scanning across typical rooms, common areas, and exterior elevations.

Field Capture

3D laser scanning captured typical rooms with existing furniture, interior walls, the swimming pool area, and exterior elevations, with detailed field notes to track non-sequential access for accurate data registration.

Processing & QA/QC

Point cloud data was registered using detailed field notes to accurately reconstruct the non-sequential scan data, with QA/QC verifying furniture placement, wall locations, and room geometries.

Deliverable Production

An existing as-built Revit model LOD 400 was developed, including furniture, wallpaper, exterior elevations, electrical plans, and reflected ceiling plans for renovation design and procurement.

Project Outputs

Deliverables Provided

The deliverables below reflect the archived project information and should be matched with project-specific images before publication.

Revit Model

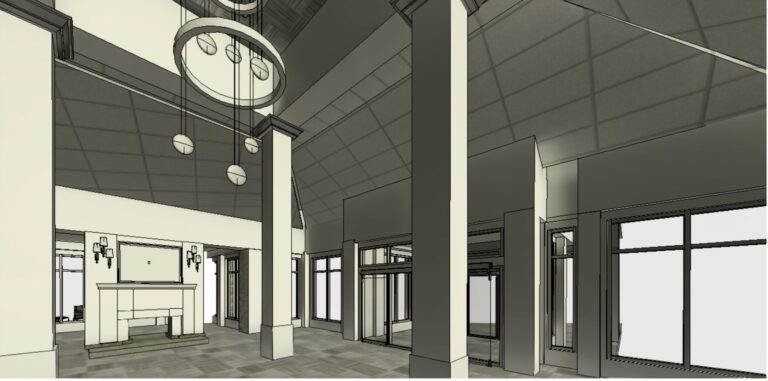

Existing as-built Revit model LOD 400 including furniture, wallpaper, interior walls, and accurate room geometries for renovation planning and procurement.

PDF Drawing Sheets

Sheet-based PDF deliverables for floor plans, furniture layouts, and interior documentation supporting the renovation design process.

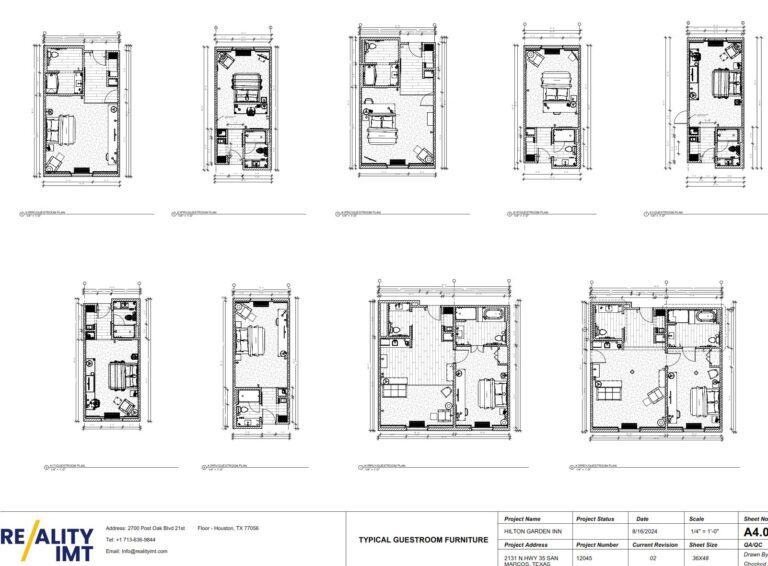

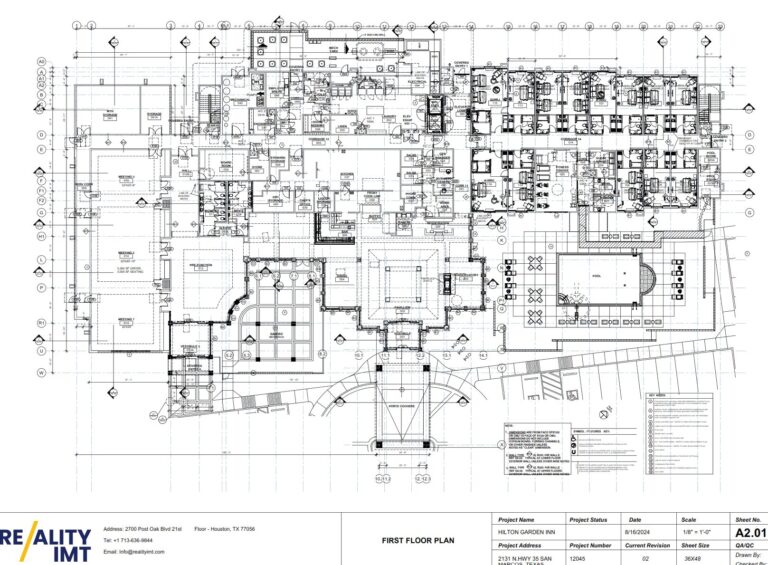

As-built drawing or floor plan snapshot prepared from field-verified data.

Furniture Documentation

Accurate furniture placement and dimensions within the LOD 400 Revit model, supporting procurement, replacement planning, and space optimization.

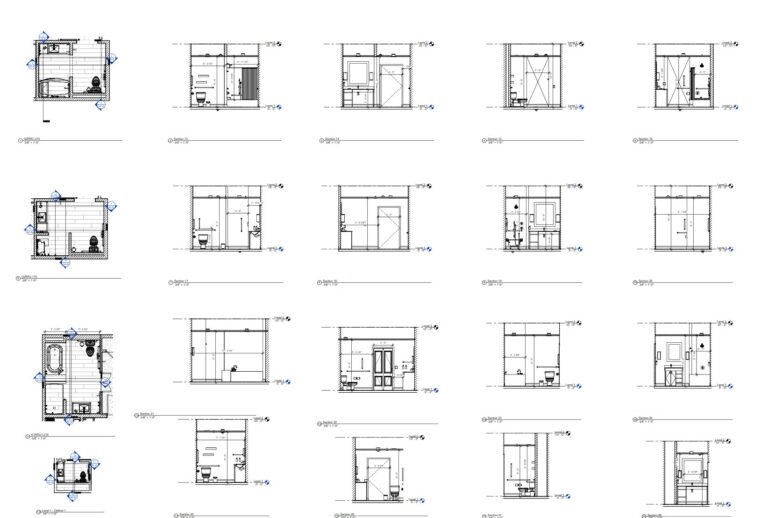

Revit model, elevation, section, or project-specific deliverable snapshot.

Exterior Elevations

Measured exterior building elevations for facade assessment, signage planning, and coordination with interior renovation scope.

Project Outcome

LOD 400 Documentation for Hotel Furniture Upgrades and Complete Room Remodel

The completed documentation provided the client with an existing as-built Revit model LOD 400 that included furniture, wallpaper, exterior elevations, electrical plans, and reflected ceiling plans. The deliverables supported furniture upgrades and the complete remodel of hotel rooms across the 137,000 SF property.

The detailed field notes and non-sequential data registration approach ensured accurate reconstruction of the occupied hotel, creating a reliable foundation for renovation design, procurement, and contractor coordination.
