Reality IMT supported a municipal drainage-inspection effort covering approximately 100 miles of off-road ditches and drainage corridors. UAV and street-level georeferenced video were used to document visible conditions and create a location-aware visual record that could support review and prioritization.
Municipal Infrastructure · Geovideo · Drainage Inspection
Approximately 100 Miles of Drainage Corridors Documented with Georeferenced Video
Reality IMT combined UAV and street-level geovideo to create a mapped visual record of off-road drainage conditions for a major municipal inspection effort. Defects along the ditches were documented in just a few days then imported into GIS. A GDB was handed over to the City for to help them dispatch maintenance crews in time before major hurricanes occur. Keeping the ditches clear of debris will minimize the flood risks in the City.
Client
Major Texas Municipality
Scope
Approx. 100 Miles
Schedule
Approx. 45 Days
Outputs
Geotagged Visual Inspection Record
Project Overview
Project Summary
Client Need
Project Challenge
Conventional drainage inspection across long off-road corridors can require substantial field time, repeated access, and manual organization of observations.
Off-Road Access
Many drainage segments were not efficiently reviewed from conventional road vehicles.
Long Linear Scope
Approximately 100 miles segmented required a repeatable capture and location workflow.
Condition Prioritization
Reviewers needed visual context tied to place, not disconnected photographs.
Project Details
Project Type
Location
Primary Industry
Facility / Asset Type
Primary Service
Supporting Services
Project Purpose
Deliverables
- Georeferenced Video
- Aerial Corridor Imagery
- Street-Level Visual Record
- Condition Tags
- Mapped Review Environment
- Repeatable Baseline
Approximate Scope
Client
Reality IMT’s Approach
Georeferenced Video for Rapid Corridor Review
Reality IMT used complementary capture platforms to document accessible and off-road segments while preserving location context.
Route & Access Planning
Drainage segments were organized by access method and capture needs.
UAV & Ground Capture
Aerial and street-level geovideo documented visible conditions.
Location Processing
Video and imagery were tied to corridor position for mapped review.
Condition Review
The visual record supported identification, tagging, and prioritization of visible issues.
Project Outputs
Deliverables Provided
The deliverables below reflect the archived project information and should be matched with project-specific images before publication.
Georeferenced Video
Mapped visual documentation of drainage corridors.
Aerial Corridor Imagery
UAV-based coverage of off-road areas.

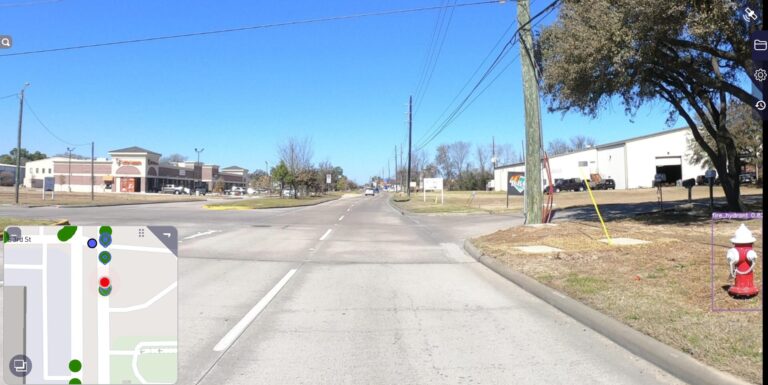

Street-Level Visual Record
Ground-based context for accessible segments.
Condition Tags
Location-aware observations for visible issues.
Mapped Review Environment
A shared way to review conditions across the corridor network.
Repeatable Baseline
A visual reference for future comparison and maintenance planning.
Project Outcome
A Faster Visual Baseline for Municipal Drainage Review
The project created a mapped visual record of approximately 100 miles of drainage corridors in about 45 days. The information supported more efficient review and gave stakeholders a consistent reference for discussing visible conditions and maintenance priorities.
- Approx. 100 miles documented
- Approx. 3-week effort
- UAV and ground geovideo combined
- Location-aware visual baseline created
Visual Documentation
Project Media

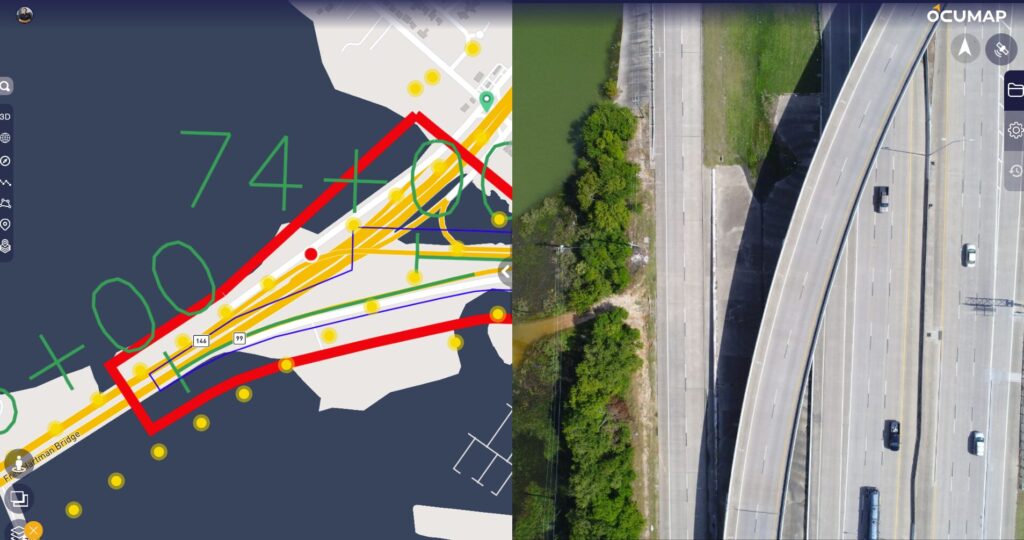

Drone Inspection Survey
Drone-based video and aerial imagery were collected to document existing drainage conditions and provide comprehensive visual coverage of the inspection corridor.

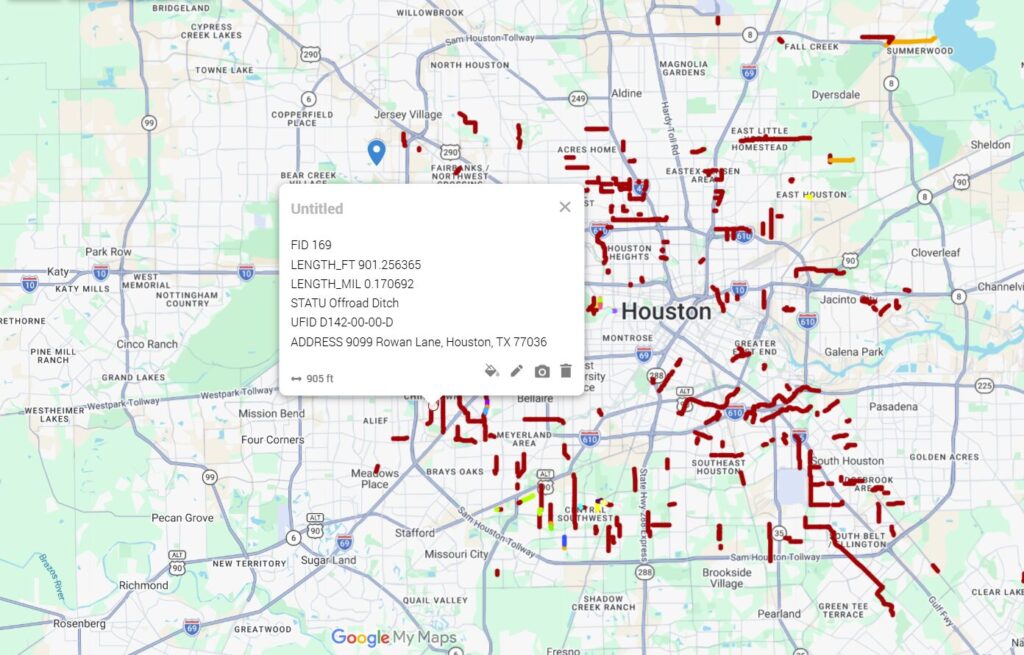

Georeferenced Project Data
Inspection imagery was processed, georeferenced, and organized into a GIS database, creating a searchable visual inventory of the documented drainage system.

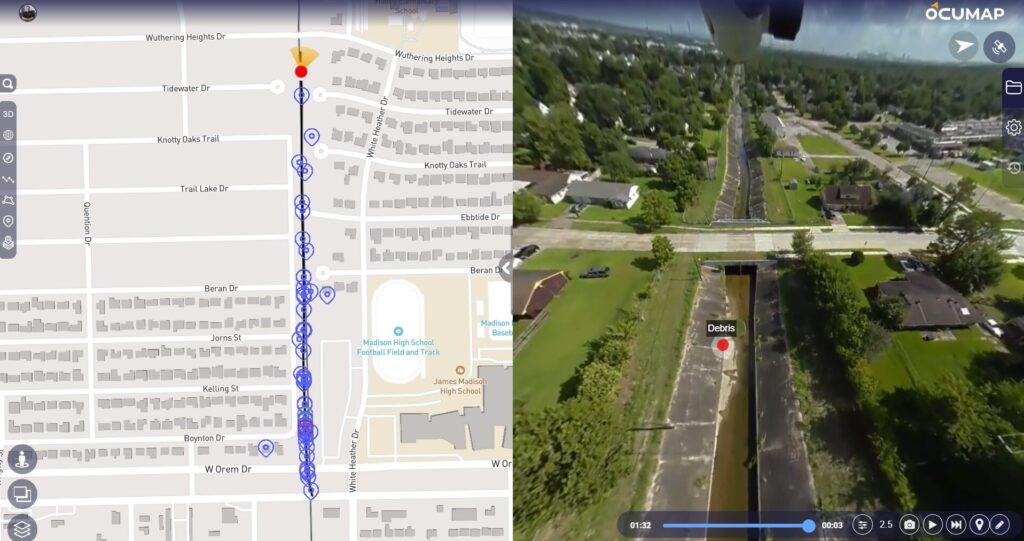

GIS Inspection Dashboard
The final deliverable combined interactive mapping with linked drone imagery, allowing stakeholders to locate assets, review conditions, and access inspection data from a single interface.
