3D Scanning & Existing-Condition Documentation for Oil & Gas
Reality IMT supports oil, gas, petrochemical, refining, pipeline, and industrial teams with 3D laser scanning, point clouds, CAD documentation, BIM models, and visual references for accurate facility planning, upgrades, retrofits, and maintenance support.
The Problem Oil & Gas Teams Need to Solve
Oil and gas facilities often rely on drawings, P&IDs, and asset records that no longer match field conditions. During revamps, shutdown planning, pipe routing, equipment replacement, safety reviews, and capital improvement work, outdated documentation can create rework, field conflicts, schedule delays, and unnecessary site visits.
Reality IMT helps project teams replace assumptions with accurate existing-condition data captured from the field. The result is a reliable digital reference of the current facility that can support engineering, planning, construction coordination, and long-term facility documentation.
How Reality IMT Supports Oil & Gas Projects
Our work combines field capture, registered point cloud data, CAD/BIM production, and project-ready deliverables for EPC teams, owner-operators, engineers, contractors, and facility stakeholders.
Field Capture
High-density terrestrial laser scanning and supporting panoramic imagery capture piping, equipment, structural elements, platforms, access areas, and surrounding facility conditions with measurable 3D data.
Technical Deliverables
Registered point clouds, CAD drawings, 3D CAD models, Revit/BIM models, isometrics, field reports, and asset documentation can be developed based on the required scope and level of detail.
Stakeholder Sharing
Project teams can use point cloud views, screenshots, PDFs, model files, and 360 visual references to reduce return visits, support remote review, and coordinate decisions with engineers, owners, contractors, and vendors.
Common Project Types
This service is best suited for existing industrial facilities where accurate field data is needed before design, maintenance, fabrication, installation, or facility upgrades.
Facility Revamps & Retrofits
Document current field conditions before modifying piping, valves, vessels, equipment, platforms, access areas, and surrounding structural conditions.
Pipeline, Piping & Equipment Updates
Capture accurate geometry and spatial relationships to support pipe routing, equipment replacement, tie-ins, fabrication planning, and coordination with existing assets.
Turnaround, Maintenance & Compliance Support
Use updated field data, visual references, and measurement-ready point clouds to plan maintenance work, reduce unnecessary visits, and support safer project review.
Recommended Services
Oil and gas projects often require a combination of scanning, CAD, BIM, and deliverable production. The final scope depends on the facility type, access, required accuracy, and intended use of the data.
3D Laser Scanning
Field capture and point cloud generation for accurate existing-condition measurement and facility reference.
As-Built Drawings & CAD
2D CAD/DWG documentation, plans, sections, equipment layouts, and drafting support based on field-verified conditions.
Scan to BIM / Revit Modeling
Modeling support for facilities, structures, equipment, and coordination workflows where BIM or 3D model deliverables are needed.
Industrial 3D CAD Models
3D CAD models can support planning, layout review, clash identification, fabrication coordination, and digital facility documentation.
Digital Facility Documentation
Supporting files may include reports, image references, asset documentation, updated drawings, and visual documentation to help project teams understand existing conditions remotely.
Relevant Deliverables
Deliverables are tailored to each project and can range from raw scan data to CAD, BIM, reporting, and visual documentation packages.
Point Cloud
Registered scan data used for measurement, modeling, layout review, and existing-condition reference.
CAD / DWG Drawings
2D documentation and design support for renovation, upgrades, planning, and coordination.
Revit / BIM Model
Model deliverables for facility documentation, design coordination, and BIM workflows.
3D CAD / Isometrics
Modeling and drawing support for piping, equipment, structural elements, and facility coordination.
360 Visual References
Supporting visual documentation for remote review and field context; not positioned as a standalone service.
Our Process
A controlled workflow helps define the scope early, manage safety and access requirements, and produce deliverables that match how the data will be used.
1. Gather Project Information
We review the project location, facility type, point of contact, access requirements, area of interest, schedule, and intended use of the data.
2. Define Scope of Work and Deliverables
The scope is aligned around what needs to be captured, required accuracy, required file formats, CAD/BIM level of detail, and final delivery expectations.
3. Review Safety, Access, and Field Constraints
Oil and gas projects may require site-specific safety coordination, PPE, escorts, access planning, controlled work areas, and clear field procedures before mobilization.
4. Field Scanning and Documentation
Reality IMT captures laser scan data and supporting imagery based on the approved scope and site access conditions.
5. Registration, QA/QC, and Deliverable Production
Point clouds are registered and reviewed before CAD drawings, BIM models, 3D CAD models, reports, or other deliverables are produced.
6. Final Delivery
Final files are delivered digitally for engineering, planning, maintenance, construction coordination, and stakeholder review.
Related Projects
Insert related projects/case studies loop filtered by industrial, oil and gas, petrochemical, facility documentation, 3D laser scanning, and as-built modeling work.
11 Apr 2025
Case Study: Precision in Renovation – 3D Laser Scanning Delivers Accurate Leasing Data for Modernized Office Building
Case Study In the high-stakes world of commercial real estate in Houston, a few inches…
5 Mar 2020
Drilling Rig 3D Laser Scan
When digitizing a drilling rig with 3D laser scan, a point cloud is generated as…
21 Aug 2019

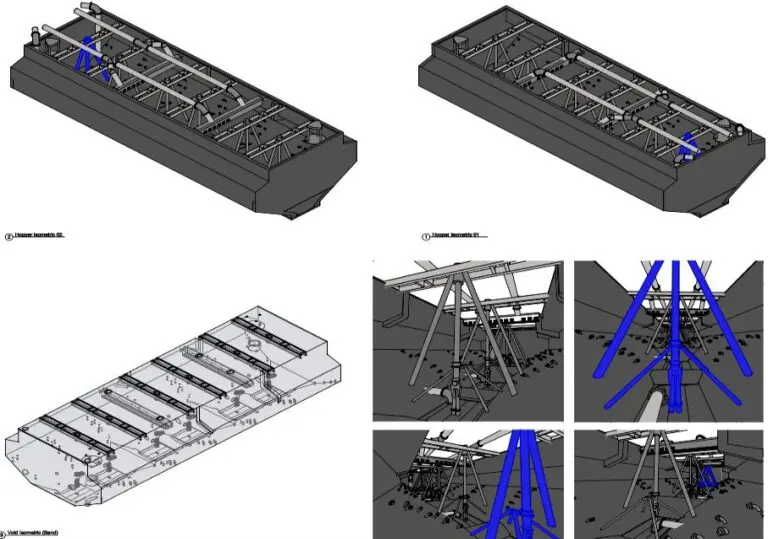

Hopper Volumetric Survey
Performing a hopper volumetric survey to understand it’s capacity is not only crucial for project…
Need this service for your project?
Send the project location, facility type, approximate area, required deliverables, access constraints, and timeline.
